HW9 Pro-Paglimpyo ug Pagmentinar

Oras: 2023-02-27 Mga Hits: 154

Mubo nga sulat:

Putla ang kuryente sa dili pa ang pag-assemble ug pagdisassemble sa produkto.




Metal tube assembly ug disassembly

Insert the metal tube into the mainbody vertically until a“click”sound is heard. Make sure metal tube is firmly locked. To disassemble the metal tube, use a hard tool to insert into the handle release hole and meanwhile pull out the metal tube upward.(Fig 1)

I-assemble ug idisassemble ang battery pack

1. I-slide ang battery pack subay sa slot ug hugot nga i-press ang battery pack hangtud nga madungog ang "click" nga tingog. Naka-lock ang battery pack.
2.Press the battery pack release button and pull the battery pack in the direction opposite to the assembly to unlock the battery pack(Except for the replacement of the battery pack, the battery pack doesn’t need to be taken out frequently)(Fig 2)


litrato-3

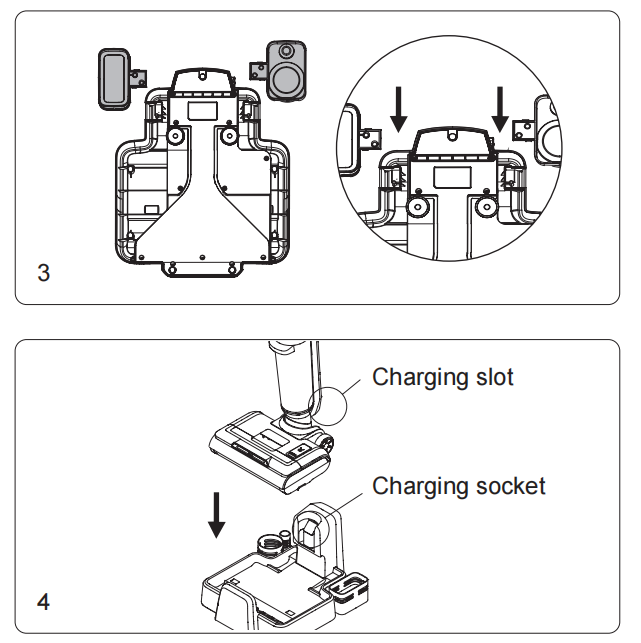

Asembliya sa naghupot sa pag-charge

I-press ang holder 1 ug holder 2 ngadto sa charging base hangtod nga madungog ang "click" sound.(Fig 3)

Ibutang ang makina sa base sa pag-charge

To put machine back to charging base, hold machine handle to lift the machine, aim charging slot on bottom of machine to the charging socket on charging base and put the machine into charging base. To use the machine, hold machine handle and lift out machine from
charging base.(Fig 4)

Ang hugaw nga tangke sa tubig nga asembliya ug pag-disassembly

To take off dirty water tank, hold machine with one hand and hold dirty water tank with another hand, press dirty
water tank release button to pull out dirty water tank.
To assemble dirty water tank, place dirty water tank
bottom into mainbody, push dirty water tank towards
mainbody until a “click” sound is heard. (Fig 5)

Brushroll window ug brushroll assembly ug disassembly

To remove brushroll window, hold brushroll window latch and pull upward to remove brushroll window. To
assemble brushroll window, align the clips on two sides of brushroll window with the slots on two sides of
floorhead. Press brushroll window down until a “click” sound is heard. (Fig 6)



litrato-4

litrato-5


To disassemble the brushroll, pull the brushroll cap
outward to take out brushroll. To assemble the brushroll,
hold brushroll cap, slide brushroll over the cylinder until
brushroll reaches the end. (Fig 7)

Limpyo nga water tank assembly ug disassembly

To take off clean water tank, hold the clean water tank
handle and pull out the clean water tank. To assemble clean water tank, put the clean water tank back to nozzle, align with the brushroll window. (Fig 8)

Kapitulo 2 Paggamit sa Produkto

Mubo nga sulat: Sa dili pa gamiton, palihug susiha kung ang makina adunay gahum, kung walay gahum, palihug bug-os nga i-charge ang makina sa dili pa kini gamiton.

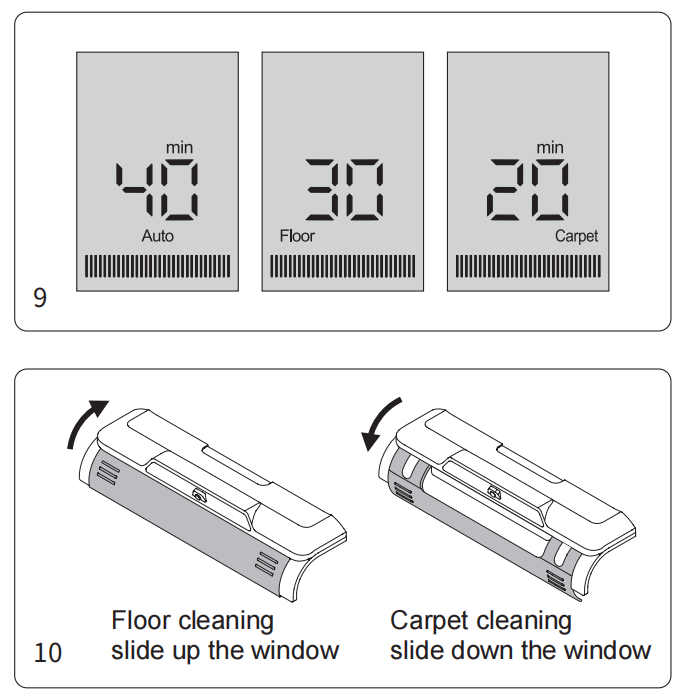

LED screen ug mga instruksyon


litrato-6



litrato-7

Operasyon sa makina

1.In the upright tilt state, press the on/off button, default is in Auto mode, press the mode button to switch among floor mode, carpet mode and Auto mode, accompanied by English voice reminding. Press the on/off button again, the voice reminds "Machine turning off", the main motor will run for 2 seconds, the machine stops working.
When the battery level is lower than 20%, the machine switches to the floor mode automatically. (Fig 9)
2.In Auto mode, the machine power changes automatically basing on how much dirty water or dust is detected. And LED light colour changes accordingly.
The more dirty water or dust is detected, the more red lights. And the less dirty water or dust is detected, the more blue lights.

Mubo nga mga sulat:

1.When cleaning carpet, please clean the floorhead first (Refer to “Floorhead cleaning") and replace with the carpet brushroll (Refer to “Brushroll window and brushroll assembly and disassembly").
2.When cleaning the floor ,make sure the brushroll window flip cover is slid up.(Fig 10)
3.When cleaning the carpet, make sure the brushroll window flip cover is slid down.(Fig 10)
4.When using the machie, the brushroll rotates normally.
The machine will stop running if it is placed upright, the display screen will keep the original use state, press the
on/off button within 30 seconds to shut down the screen, if there is no operation, The main motor will stop and power off after running for 2 seconds, the display screen turn off.
5.After the machine finishes using, put it vertically on the charging base to ensure sufficient power for next usage.

Pag-spray sa tubig function

Sa diha nga ang makina nagtrabaho, i-press ang water spray button, ang spray mouth nag-spray sa fan-shaped nga tubig nga padayon; buhian ang buton sa spray sa tubig aron mahunong ang pag-spray sa tubig. Pindota ang butones sa pag-spray sa tubig sa makaduha nga padayon sulod sa usa ka segundo, ang baba sa spray mo-spray sa pormag fan nga tubig sulod sa 3 segundos.(Fig 11)

Mubo nga mga sulat:

1.The spray button cannot be used together with the on/off button or mode button.
2.Please use the JIMMY cleaning solution we provide to clean the product. Do not put high foam solution
into the cleaning tank,otherwise too much foam will be generated during using, which may penetrate into the machine and cause danger.

Pag-charge sa makina

Ikonektar ang bayad sa suplay sa kuryente ug base sa pag-charge, ibutang ang produkto sa base sa pag-charge aron magsugod sa pag-charge. Ang display nga screen mopalong kung hingpit nga ma-charge.

Mubo nga mga sulat:

1.If the product is long idled , after purchase, please use the adapter supplied with the product to charge the battery within every 3 months.
2.Do not leave the charger on power socket all the time to prevent children from touching it by mistake.
3.Keep the charger plug and your hands dry before inserting the charger into the charging stand.
4.Before the first use, please fully charge the battery pack, and before the second charge, please empty the battery to ensure the life of the battery pack.

Brushroll sa kaugalingon nga paghinlo ug pagpauga function

Before self-cleaning, please empty the dirty water tank first, then fill the clean water tank with water and place the machine on the charging base. In the charging mode, long press the mode button for 3 seconds to enter the self-cleaning mode, accompanied by voice reminding. When the display screen shows "litrato-9"symbol, it will automatically enter the drying mode and start charging.








litrato-8

litrato-10

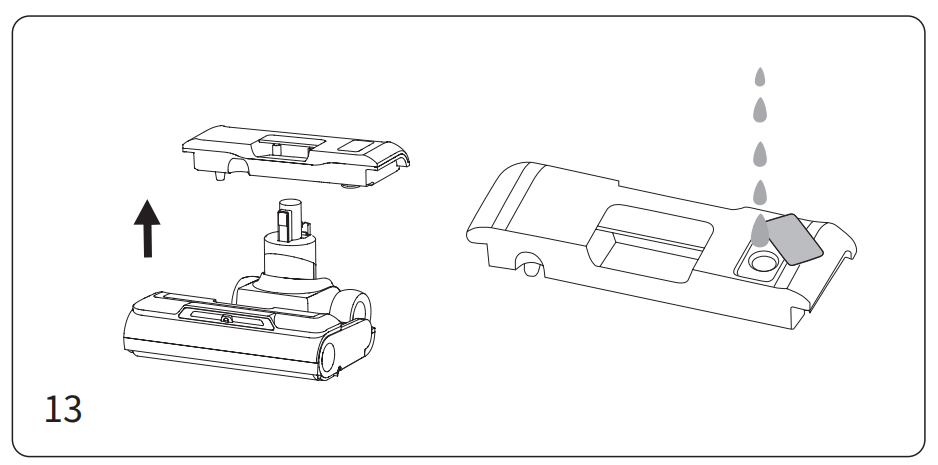

Pun-a ang limpyo nga tangke sa tubig

Pun-a ang limpyo nga tangke sa tubig: Human makuha ang limpyo nga tangke sa tubig, ablihi ang plug sa pagpuno sa tubig, ibalik kini sa kilid aron ibutyag ang lungag sa pagsulod sa tubig, ibubo ang limpyo nga tubig ug solusyon sa paglimpyo, ug dayon i-plug balik sa orihinal nga posisyon ug i-install pag-usab ang limpyo nga tangke sa tubig ngadto sa floorhead. (Fig 13)



Pag-andar sa tingog

The voice of the new machine is turned on by default, press the mute button to turn off the voice function;

press the mute button again to turn on the voice function. (Fig 14)

litrato-11

Brushroll stuck indicator

When the cleaner is in working, if the brushroll is stuck, the whole machine will stop and give a voice reminder“Please clean the brushroll”. The display "floor" and "carpet" flashes at the same time for 10 seconds and then the screen turns off. When the cleaner is in cleaning mode, if the brushroll is stuck, the whole machine will stop and give a voice reminder “Please clean brushroll”. The display "floor" flashes until the machine is removed from the charging base or remove the brushroll. Clean the foreign matter attached to the brushroll or the hair winding on brushroll(See" Cleaning and Maintenance of Floorhead Assembly " ).

Mubo nga mga sulat:

1.When cleaning the floorhead, As there may be some water in the dirty water tank, please remove the dirty water tank first.
2.Please do not put the machine upside down to prevent water from affecting the use of the machine and floorhead.
3.If water ingress into the machine, do not restart it to avoid danger. Please shake out the water from the machine and air dry it before use.

Ang agianan sa hangin nga gibabagan nga timailhan

When the upright cleaner is in working or self clean mode, if the air path is blocked, the machine will stop working and give a voice reminder “Please clean the air path and filter”. The display "floor" and "carpet" flashes at the same time for 10 seconds and then the screen goes off. When the upright cleaner is self cleaning, if the air path is blocked, the machine will stop working and give a voice reminder “Please clean the air path and filter”. The display "floor" and "carpet" flashes at the same time until the whole machine is removed from charging base or the air path is cleaned.

Timaan sa kuryente sa baterya

When the upright cleaner is working, if the voice reminds " Low battery. Please charge the battery ", Please use it after charging. When the upright cleaner is working, if the voice reminds " Low battery. Machine will be turned off soon. Please charge the battery ", the power is about to be exhausted, and it will automatically shut down. Need to charge for use.

Kapitulo 3 Paglimpyo ug Pagmentinar

Mubo nga mga sulat:

1.HEPA filter,brushroll and cleaning solution are available at distributors.
2.It is recommended to clean the dirty water tank in time after use; When the amount of dust is too much resulting in HEPA blocked, it is necessary to clean HEPA, if necessary, HEPA can be replaced; After a long time of use, the brushroll may entangle with hair and
other long subjects, which needs to be cleaned in time.

litrato-12

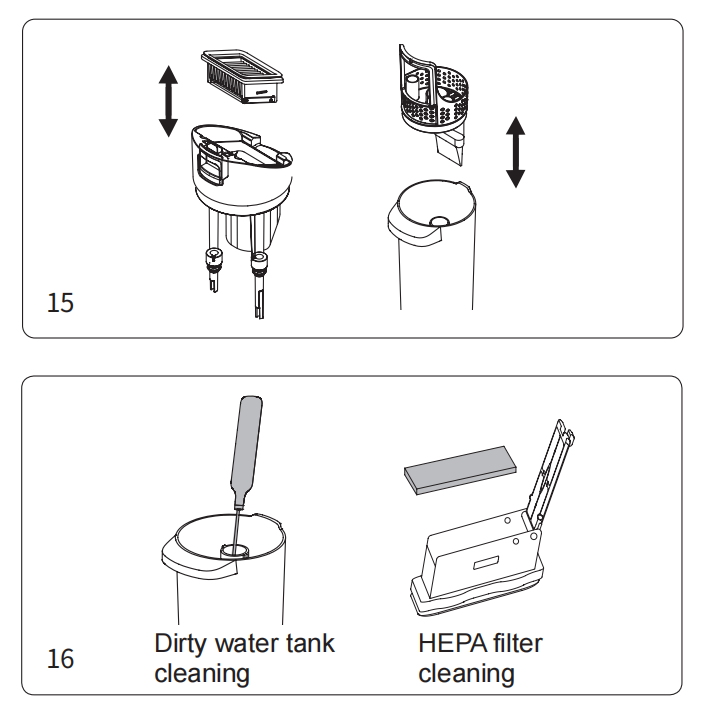

Paglimpyo sa hugaw nga tangke sa tubig

1.When dirty water tank is full, the dirty water tank full indicator on LED screen will blink.The machine will stop working immediately and has voice reminding “Dirty water tank full, please empty tank”.
2.After turning off the vacuum cleaner, remove the dirty water tank, lift the water tank top cover, and remove the foam filter frame from it, open the flip cover of the foam filter frame, take out the foam filter. Pour out dirty water and dirt in the water tank, then wash dirty water tank,
water tank cover, foam filter frame and foam filter. (Fig 15)
3.If there is foreign matter in the dirty water tank pipe, it can be cleaned with the cleaning brush.
4.Dry the above parts after washing. And then reassemble all the parts back into dirty water tank.

Mubo nga mga sulat:

1.When the machine is not in use, the upper cover of dirty water tank should be taken out for airing to avoid odor.
2.After the machine has finished working, it is recommended to clean the dirty water tank immediately to avoid odor. (Fig 16)
3.After cleaning the upper cover of the dirty water tank, the metal contact sheet on the top cover of the dirty water tank must be wiped dry before use

Paglimpyo sa floorhead

Take out the brushroll window and pull out the brushroll. Use dry cloth to wipe brushroll housing and remove the hair tangled around brushroll by the blade. Wash the brushroll window and brushroll in clean water. After cleaning, assemble brushroll and brushroll window back to machine(The brushroll can also be put into the accessories holder for drying).(Fig 17)
Mubo nga mga sulat:
1.Do not wash the whole floorhead in water or under tap water. Do not wash the floorhead in water or under tap water after pulling out the brushroll. Do not use tap water to wash the air path of the floorhead after taking of clean water tank. So as not to damage the components and affect the use.
2.If the cleaner will not be used soon after cleaning,completely dry the dirty water tank, dirty water tank cover, filter, filter frame, brushroll, brushroll window, machine and then assemble the machine for storage, in order to prevent the bacteria from breeding in the humid environment and producing odor.

Paglimpyo sa sensor sa abog

When the voice remind "Please clean the air path and filter", remove the dirty water tank. Check whether there are large particles blocking the pipe of floorhead first. Second, check whether the dust sensor located inside air path is covered by dirt. Then wipe the inner wall of the pipe with mop or cleaning brush provided. (Fig 18)




litrato-13

Pagpadayon ug Pagtipig
1. Please turn off the machine before the cleaning.
2. Wipe the machine body with clean water or neutral detergent. Before wiping, be sure to wring out the cleaning cloth to prevent water from flowing into the electrical parts of the machine.
3. It is recommended to clean the dirty water tank, filter, brushroll and brushroll window after each use. The machine will stop working if the dirty water reaches MAX line.Please drain the dirty water tank immediately.
Human ang natipon nga oras sa paggamit sa filter moabot sa 30-50 ka oras (nagkalain-lain nga gibase sa filter status), ilisan ang filter aron malikayan nga maapektuhan ang performance sa makina. Ang filter mahimong mapalit gikan sa lokal nga distributor.
4. When the machine is long idled, place it in a cool and dry place, avoid direct sunlight or wet environment.
5. When pack and store the machine, Please be sure to clean the machine and dry all parts to prevent damage to the machine.
pasidaan
Ang appliance kay para lang sa gamit sa panimalay.
Sa dili pa gamiton ang produkto, susiha kung ang lokal nga boltahe nahiuyon sa boltahe nga gimarkahan sa power adapter.
Susiha ang produkto sa dili pa gamiton, ihunong ang paggamit kung ang produkto o adapter nadaot.
Paggamit ra sama sa gihulagway sa kini nga manwal.
Kini nga appliance dili mahimong gamiton sa mga bata ug mga tawo nga adunay pagkunhod sa pisikal, sensory o mental nga kapabilidad o kakulang sa kasinatian ug kahibalo gawas kung sila gihatagan sa pagdumala o panudlo bahin sa paggamit sa appliance sa luwas nga paagi ug nasabtan ang mga peligro nga nalambigit.
Ayaw gamita kini nga produkto isip dulaan. Ipahilayo kini nga produkto gikan sa maabot sa mga bata. Pag-atiman sa mga bata ug siguroha nga dili nila isipon kini nga produkto isip usa ka dulaan.
Ayaw hikapa ang plug gamit ang basa nga kamot.
Paggamit og dugang nga pag-amping kung manglimpyo sa hagdanan aron malikayan ang pagkahulog.
Ayaw gamita o idisassemble o ilisan ang bisan unsang sangkap kung adunay kadaot sa kable sa kuryente, plug, baterya o conductive parts. Ang pagdisassemble o pag-ilis sa mga sangkap sa imong kaugalingon mahimong hinungdan sa electric shock o sunog. Dili moako sa responsibilidad si JIMMY. Kung nadaot, ang produkto kinahanglan nga ayohon o pulihan ni JIMMY, distributor ni JIMMY o kwalipikado nga tawo nga gitudlo ni JIMMY aron malikayan ang kadaot.
I-recharge lang gamit ang adapter nga gitakda ni JIMMY.
Gamit lang ang battery pack nga gitakda ni JIMMY. Ang paggamit sa bisan unsang ubang baterya pack mahimong hinungdan sa pagbuto, pagkasamad ug o pagkadaot sa produkto.
Kung ang produkto dili molihok sumala sa mga panudlo, grabe nga naapektuhan, nahulog gikan sa taas, nadaot, o nahulog sa tubig, ayaw kini gamita ug kontaka ang JIMMY o JIMMY distributor.
Gamita lamang ang gipiho nga JIMMY nga kapuli nga mga piyesa o mga dugtong.
Ayaw ibira o ipadayon ang kable. Ipahilayo ang cable gikan sa init nga mga ibabaw. Ayaw ibutang ang kable sa sirado nga pultahan o ibira kini sa hait nga ngilit o eskina. Ipahilayo ang kable sa lugar nga lakaw. Ayaw pag-operate sa produkto tabok sa cable.
I-unplug ang produkto kung wala kini gigamit o sa dili pa ayohon.
Ayaw pagbitad sa pisi o pagdala sa pisi aron ibalhin ang produkto, o gamita ang pisi isip gunitanan.
Ang produkto kay rechargeable electric appliance. Ayaw ibilin ang makina nga modagan nga wala maatiman
Kuhaa ang battery pack kung ang produkto gilimpyohan, giayo o dugay nga nag-idle.
Ayaw pagduol sa mga gamit sa pagpainit o pagladlad ubos sa kahayag sa adlaw sa dugay nga panahon, aron malikayan ang sobra nga pagpainit nga hinungdan sa deformation sa balay.
Itago ang mga butang nga mahimong makababag sa agianan sa hangin gikan sa agianan sa hangin ug outlet aron malikayan ang sobrang kainit sa makina.
Ang mainbody ug floorhead sa produkto adunay mga sangkap sa kuryente, dili mahugasan sa ilawom sa tubig.
Ayaw paglimpyo o pagdisassemble sa tabon sa brushroll o brushroll kung ang makina naka-on o ubos sa pagtrabaho aron malikayan ang kadaot.
Ayaw gamita ang produkto sa pagkuha sa nagdilaab nga mga butang sama sa nagdilaab nga uling o sigarilyo ug uban pa.
Ayaw gamita ang produkto sa pagkuha sa hait nga mga butang sama sa buak nga bildo.
Ayaw gamita ang produkto sa pagkuha sa apog, semento, toner, gypsum powder, harina ug uban pang mga ultra-fine substances.
Ayaw gamita ang produkto sa pagkuha sa acid-base nga panglimpyo nga likido, panghugas sa pulbos ug uban pang makadaot nga mga likido.
Ayaw gamita ang produkto sa pagkuha sa mga butang nga masunog ug mobuto sama sa gasolina, alkohol, pahumot, pintura, ug uban pa.
Do not disassemble the closed machine, and do not try to change the performance of the machine.
Only get help from the professional personnel of the manufacturer, its maintenance department or similar departments, otherwise it will cause danger.
I-off ang kuryente ug i-unplug ang charger kung ang mga produkto dugay nga nag-idle.
Ang teknikal nga detalye sa produkto niini nga manwal gibase sa mga resulta gikan sa mga lab test sa JIMMY o gitudlo nga ikatulo nga partido. Gireserba sa kompanya ang tanan nga mga katungod alang sa katapusang mga pagpatin-aw.
Mahitungod sa paggamit sa produkto
Ang kini nga produkto angayan alang sa gahi nga salog sa sulud sa sulud, lakip ang waxed nga salog, salog nga goma, salog sa tile ug salog nga kahoy nga silyado, solidong salog nga kahoy ug uban pang patag nga nawong, ang paggamit sa produkto sa dili patag nga yuta mahimong dili makab-ot ang labing kaayo nga epekto.
Ayaw i-on ang makina sa dili pa ang hugaw nga tangke sa tubig ug ang limpyo nga tangke sa tubig ibutang sa lugar sumala sa panudlo.
Ayaw pag-uyog sa produkto pataas ug paubos o mabangga sa kusog aron mapugngan ang hugaw nga tubig nga modagayday sa motor; sa diha nga ang produkto gi-on, ayaw ipataas o dad-a ang makina pataas ug paubos, ug ayaw itakilid ang produkto sa usa ka kilid o ibutang kini nga patag sa salog aron mapugngan ang hugaw nga tubig nga moagos ngadto sa motor.
Ayaw pagdagan ang produkto sa dugay nga panahon nga gibabagan sa float ang pagsulod sa hangin aron malikayan ang kadaot.
Human magamit ang produkto, limpyohi ang hugaw nga tangke sa tubig, suction nozzle, agianan sa hangin ug ibutang kini sa bentilasyon ug uga nga lugar. Ang basa nga lugar makaapekto sa insulasyon ug kinabuhi sa mga electrical appliances.
Bahin sa Solution sa Paglimpyo
Ang daghang solusyon sa paglimpyo nga mosulod sa motor mahimong hinungdan sa kadaot sa appliance.
Sagola ang solusyon sa limpyo nga tubig sumala sa mga panudlo (ang ratio sa solusyon sa limpyo nga tubig mao ang 1:50). Girekomenda nga gamiton ang gihatag nga solusyon sa paglimpyo. Ayaw gamita ang solusyon sa pagpanglimpyo adunay acid, alkali, alkohol nga solusyon o mga butang nga makadaot sa kalikopan.
Itago ang solusyon sa pagpanglimpyo nga dili maabot sa mga bata. Kung adunay bisan unsang solusyon nga mosulod sa mga mata, hugasan dayon kini sa limpyo nga tubig. Kung ang bisan unsang solusyon natulon sa aksidente, tan-awa dayon ang medikal nga pag-atiman.
Ang hugaw nga tubig ug paglabay sa solusyon kinahanglang mosunod sa lokal nga mga regulasyon sa kinaiyahan.
Mahitungod sa paglabay sa baterya
Ang baterya sa produkto adunay mga materyales nga makadaot sa kalikopan. Kuhaa ang battery pack gikan sa produkto sa dili pa ilabay.
I-off ang produkto ug i-unplug ang adapter sa dili pa kuhaa ang battery pack.
Pagdumala sa waste battery pack nga luwas ug husto. Ayaw kini ibutang sa kalayo, tubig o yuta.
Kung ang gilabay nga pagtagas sa baterya hinungdan sa polusyon sa panit o sinina, Hugasi gamit ang limpyo nga tubig ug tan-awa dayon ang medikal nga pag-atiman
